Khoom Description

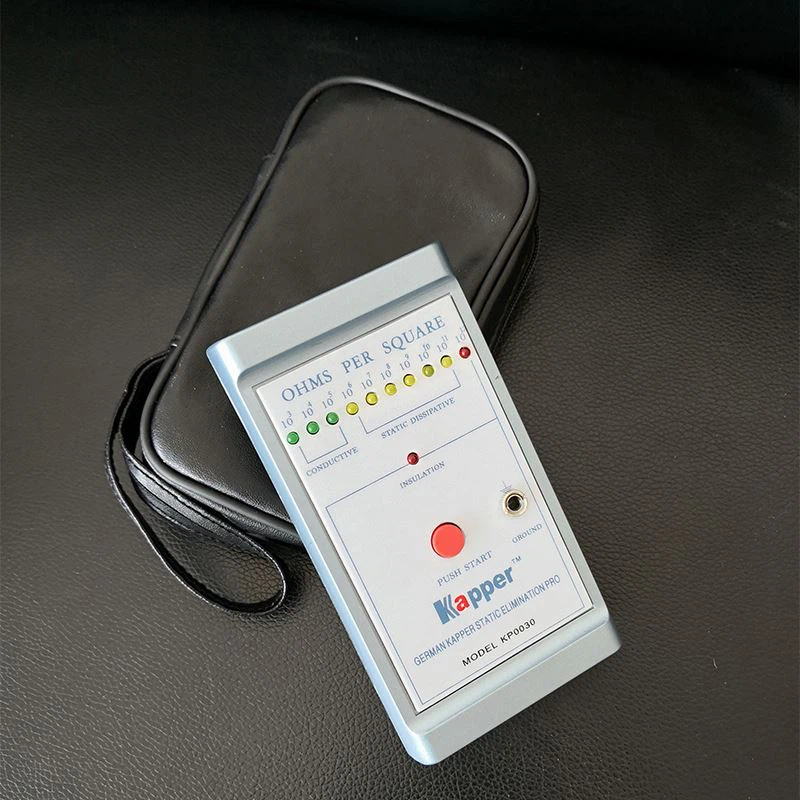

Handheld Surface Resistance Tester txais ASTM tus qauv D-257 kev sim, tsuas yog muab tso rau saum npoo ntawm cov khoom ntsuas thiab nias lub pob liab. Lub ntsuas yuav muaj kaum 10 ΩΩ -10 Ω² Ω los yog rwb thaiv tsev, thiab LED yuav teeb ib qho ntawm cov nqi ntsuas. Thaum kuaj, ob qhov sib npaug ntawm cov electrodes nyob rau hauv qab ntawm lub tester yog siv los soj ntsuam sai sai ntawm qhov chaw conductivity, nto electrostatic dissipation kev ua tau zoo, thiab nto rwb thaiv tsev ntawm cov khoom. (Ceeb Toom: Cov cuab yeej no tsis tuaj yeem ntsuas cov khoom nrog qhov kev tiv thaiv saum npoo tshaj 10 ¹² Ω.)
KP0030 nto tiv thaiv tester yog dav siv hauv kev lag luam xws li microelectronics, kws tshuaj, aerospace, thiab precision machinery.
Nta
- Compact loj thiab portable tsim.
- Kev ntsuas siab raug thiab ua haujlwm yooj yim.
Tsis muaj
| Fais fab mov |
dc9v ua |
| Loj |
129mm (L) * 70mm (W) * 27 hli (H) |
| Ua haujlwm |
40H |
| Qhov tseeb |
±10% |
| Qhov hnyav |
cav 120g |
| Kev ntsuas ntau |
10E3Ω-10E12Ω |
| Ua haujlwm kub |
0 degree -50 degree |
| txheeb ze humidity |
0%-80%RH |
Set muaj:
Surface resistance meter
Cable rau grounding unit.
Roj teeb
Cov Khoom Paub meej
Daim ntawv thov
- Siv los ntsuas qhov chaw tiv thaiv ntawm cov rooj sib tham hauv Circuit Court, cov khoom siv hluav taws xob, thiab cov ntaub ntawv ntim khoom los tiv thaiv electrostatic paug (ESD) kev puas tsuaj.
- Qhov zoo tshaj plaws rau kev tswj kom zoo hauv kev tsim cov khoom yas, cov khoom siv roj hmab, thiab lwm yam ntaub ntawv uas qhov chaw tiv taus yog qhov tseem ceeb.
- Xyuas kom meej tias qhov chaw hauv chav huv si ua tau raws li cov qauv kev tiv thaiv uas yuav tsum tau ua kom muaj qhov tsis muaj qhov tsis zoo thiab tsis muaj qhov zoo li qub.
FAQ
Q: Dab tsi yog qhov raug ntawm qhov ntsuas qhov ua haujlwm saum npoo av?
A: Qhov tseeb ntawm peb qhov ntsuas qhov ntsuas qhov ntsuas yog feem ntau ± 5%. Txawm li cas los xij, qhov tseeb yuav txawv me ntsis nyob ntawm qhov ntsuas qhov ntau thiab ib puag ncig.
Q: Nws puas tuaj yeem ntsuas ob qho tib si conductive thiab insulating cov ntaub ntawv?
A: Yog lawm, peb tus neeg ntsuas ntsuas tuaj yeem ntsuas ntau yam khoom siv, los ntawm cov khoom siv hluav taws xob mus rau qhov zoo heev, vim nws qhov ntsuas ntau yam.
Q: Lub roj teeb ntev npaum li cas?
A: Lub roj teeb lub neej nyob ntawm qhov zaus ntawm kev siv. Raws li kev siv ib txwm siv, lub roj teeb tuaj yeem kav ntev li 40 teev. Nws raug nquahu kom nqa cov roj teeb seem rau kev siv sijhawm ntev.
Q: Nws puas yooj yim rau calibrate tus tester?
A: Tus tester los nrog cov txheej txheem calibration yooj yim. Peb muab cov lus qhia ntxaws ntxaws hauv cov neeg siv phau ntawv los qhia koj txog cov txheej txheem calibration. Nws raug nquahu kom calibrate lub ntsuas tsis tu ncua kom tswj tau nws qhov tseeb.
